NCARB Project-Planning-Design Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 45
A site has been engineered with a 1:20 grade.
Which of the following sidewalk designs would be the most cost-effective way to get from the top to the bottom and still be in compliance with the accessibility standards?
- A. Cutting diagonally across the slope at 1:12 with no handrail
- B. Switchback ramps at 1:12 with a handrail
- C. At the same grade as the slope with no handrail
- D. Cutting diagonally across the slope at 1:10 with a handrail
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
A 1:20 slope means a 5% grade (1 vertical unit per 20 horizontal units), which is slightly steeper than the ideal maximum slope for accessible ramps.
* Option C: Cutting diagonally across the slope at 1:12 (~8.33%) slope without a handrail is the most cost-effective design that still complies with accessibility standards. According to the Americans with Disabilities Act (ADA) and ICC A117.1, the maximum slope for an accessible ramp is 1:12. Handrails are required on ramps with a rise greater than 6 inches (150 mm). If the rise is less than 6 inches, handrails are not required.
Because the diagonal cut reduces the slope to 1:12 and the total rise is likely less than 6 inches given the gentle 1:20 original slope, handrails are not mandatory, making this solution economical and code compliant.
* Option A: Switchback ramps at 1:12 with handrails are compliant but more expensive due to increased construction complexity and space requirements.
* Option B: A 1:10 slope (10%) exceeds the maximum allowed slope for accessible ramps and requires handrails, thus non-compliant.
* Option D: Following the existing 1:20 slope without modification does not provide the maximum accessibility slope and may be acceptable but might not comply with certain stricter local codes for ramps.
Therefore, Option C balances accessibility, cost, and compliance optimally.
References:
ARE 5.0 Project Planning & Design Content Outline: Environmental Conditions and Context - Site Accessibility and Grading ADA Standards for Accessible Design (2010) ICC A117.1 Accessibility Standards The Architect's Handbook of Professional Practice, 15th Edition, Chapter 7: Site Planning and Accessibility
NEW QUESTION # 46
Refer to the exhibit (concrete rigid frame building with aluminum curtain wall system).
The drawing shows a proposed concrete rigid frame building enclosed in an aluminum curtain wall system.
To save money, the contractor proposed to eliminate the curtain wall system and substitute steel stud framing, which is anchored between the columns and beams and covered with a stucco finish.
What is the most likely result of this substitution?
- A. The stucco will crack due to movement of the frames under lateral loading.
- B. Increased dead load of the stucco system will overload the frames.
- C. Wind load on the stud framing will transfer directly to the concrete frame and overload it.
- D. The substitution will work and will save construction cost.
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Curtain wall systems are designed to accommodate building movement, including deflections from wind and seismic loads, and provide an air and moisture barrier without carrying structural loads.
Replacing the curtain wall with a steel stud framing covered with stucco, which is rigid and brittle, will not accommodate differential movement between the frame and cladding. This is likely to cause stucco cracking as the steel framing and concrete frame move differently under lateral loads.
The wind load will not necessarily overload the concrete frame (A), as loads are transferred properly in both systems.
The substitution may save initial cost but will cause durability and maintenance problems (B).
Dead load increase (D) is minimal compared to structural effects of cracking.
NCARB guidelines stress proper cladding systems that can accommodate structural deflections to prevent damage.
References:
ARE 5.0 PPD - Building Systems and Assemblies, Curtain Wall Systems
The Architect's Handbook of Professional Practice, 15th Edition - Building Envelope
NEW QUESTION # 47

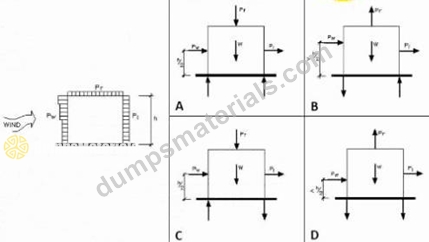

Refer to the exhibit (building subjected to wind with force diagrams A, B, C, D).
Which of the force diagrams shown correctly represents the resultant wind forces causing an overturning effect on the building and the forces that resist this overturning effect? (Direction and point of application of forces are to be considered; magnitude of forces is not.)
- A. C
- B. D
- C. B
- D. A
Answer: D
Explanation:
The diagram shows a building exposed to wind loading, which causes lateral pressure (P_w) on the windward wall and suction (negative pressure) on the leeward wall, generating an overturning moment about the base of the building.
* Diagram A correctly shows:
* The wind pressure (P_w) pushing on the windward wall, producing a lateral force applied at approximately two-thirds the building height (h), which tends to overturn the building.
* The wind suction (P_l) pulling on the leeward wall, acting in the opposite direction but also contributing to the overturning moment.
* The reaction forces at the base resist this overturning: an uplift force (negative vertical reaction) on the windward side and a downward force on the leeward side, counterbalancing the moment.
* Diagrams B, C, and D incorrectly orient or place the forces or reactions, failing to accurately depict the overturning moment and the corresponding resisting forces.
NCARB ARE 5.0 PPD guidelines on environmental conditions emphasize understanding wind load effects, including lateral pressures, suction, overturning moments, and foundation reactions essential for structural design and safety.
References:
ARE 5.0 Project Planning & Design Content Outline: Environmental Conditions and Context - Wind Loads and Structural Response ASCE 7-16: Minimum Design Loads for Buildings and Other Structures (Wind Load Provisions) The Architect's Handbook of Professional Practice, 15th Edition, Chapter 13: Building Codes, Standards, and Regulations
NEW QUESTION # 48
In order to minimize stratification, in a forced-air heating system, which locations of supply and return grilles should be avoided?
- A. Low supply, high return
- B. High supply, low return
- C. High supply, high return
- D. Low supply, low return
Answer: D
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Stratification refers to the layering of air temperatures within a space, where warmer air rises and cooler air stays near the floor. In forced-air heating systems, minimizing temperature stratification is critical to maintaining occupant comfort and energy efficiency. The placement of supply and return air grilles plays a significant role in preventing stratification.
* Low supply, low return (Option C) should be avoided because supplying warm air near the floor and simultaneously returning air also near the floor limits effective air mixing. Warm air naturally rises, so if the return grille is also low, cooler air remains trapped above, resulting in poor circulation and uneven temperatures throughout the room. This can cause discomfort, with warmer air accumulating near the ceiling and colder air lingering in the occupied zone.
* High supply, low return (Option B) is often preferred because warm air is supplied from high points, then cools and sinks toward the lower return grille, promoting vertical circulation and mixing, reducing stratification.
* Low supply, high return (Option A) and high supply, high return (Option D) can be less effective depending on system design, but the critical issue is having both supply and return located low, which restricts air movement and stratification mitigation.
According to NCARB PPD content on building systems and HVAC design, proper grille placement is essential to maintain thermal comfort, minimize energy waste, and comply with indoor environmental quality standards. Effective grille placement harnesses natural convection to ensure even temperature distribution, reducing the potential for hot or cold spots and improving occupant satisfaction.
References:
ARE 5.0 Project Planning & Design: Building Systems, Materials, and Assemblies - HVAC Principles Black Spectacles ARE PPD Study Materials: Forced Air Heating and Cooling Systems The Architect's Handbook of Professional Practice, 15th Edition, Chapter 13: Mechanical Systems and Indoor Environmental Quality
NEW QUESTION # 49
The zoning approval process may involve obtaining which of the following? Check the four that apply.
- A. Special exception
- B. Building permit
- C. Undue hardship exemption
- D. Grading permit
- E. Variance
- F. Conditional use
Answer: A,D,E,F
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Zoning approval can involve:
Variance (A): Permission to deviate from zoning requirements.
Grading permit (C): Approves site grading related to zoning.
Conditional use (D): Allows use under specific conditions.
Special exception (E): Permits uses not normally allowed but granted under certain circumstances.
Building permits (B) are separate from zoning.
Undue hardship exemption (F) is legal but not typically a zoning approval term.
References:
ARE 5.0 PPD - Codes and Regulations, Zoning
The Architect's Handbook of Professional Practice, 15th Edition - Land Use Controls
NEW QUESTION # 50
Which of the following types of heating system would be appropriate when the design requires a very compact system that has a low initial cost, is easily zoned, and has a quick response to temperature changes?
- A. Hydronic
- B. Electric
- C. Combination forced air/hydronic
- D. Forced air
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Electric heating systems are compact, have low initial installation costs, and can be easily zoned with individual controls. They provide rapid response to temperature changes, making them suitable where space is limited and quick control is desired.
Hydronic systems have slower thermal response and require piping infrastructure.
Forced air systems need ductwork and are less compact.
Combination systems increase complexity and cost.
References:
ARE 5.0 PPD - Building Systems and Assemblies, Heating Systems
The Architect's Handbook of Professional Practice, 15th Edition - Mechanical Systems
NEW QUESTION # 51
Comprehensive recycling of materials from building demolition is primarily limited by which one of the following?
- A. Relatively high labor costs compared to cost of raw materials
- B. Difficulty associated with specifying recycling requirements
- C. Lack of market for some recycled materials such as concrete and steel
- D. Technical difficulties of recycling more than 20% of demolition material
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Although recycling building materials is environmentally beneficial, the relatively high labor costs for sorting, processing, and handling recycled materials often limit comprehensive recycling efforts. Raw materials can be cheaper, discouraging extensive recycling unless incentives or regulations exist.
Technical difficulties (A) and market availability (D) have been improved over time.
Specifying recycling (C) is a design phase task but is not the primary practical limitation.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Sustainable Design
The Architect's Handbook of Professional Practice, 15th Edition - Demolition and Recycling
NEW QUESTION # 52
If evaluating on a life-cycle basis, which of the following effects is the major reason for using native or adapted plantings on-site?
- A. Reduction in transplantation costs
- B. Reduction in irrigation water and fertilizer
- C. Reduction in root adaptation time period
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Native or adapted plantings are used primarily to reduce long-term environmental and maintenance costs in sustainable site design. The most significant life-cycle benefit is the reduction in irrigation water and fertilizer requirements because native plants are naturally suited to local climate and soil conditions. They typically require less supplemental watering, fertilizer, and pesticide use, which reduces resource consumption and maintenance efforts over the plantings' lifespan.
Option B (Reduction in root adaptation time period) is a minor factor relative to water and nutrient needs.
Option C (Reduction in transplantation costs) relates more to initial installation cost rather than long-term life- cycle impacts.
Using native or adapted plant species supports sustainable landscape design principles emphasized in the NCARB PPD content, contributing to water conservation, reduced chemical use, and improved ecological performance.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Sustainable Site Design The Architect's Handbook of Professional Practice, 15th Edition - Landscape and Site Planning NCARB Sustainable Design Guidelines
NEW QUESTION # 53
Which of the following roofing types is the most appropriate for installation during below-freezing weather conditions on a roof with less than a 2:12 slope?
- A. A ballasted EPDM roof
- B. A self-sealing shingle roof
- C. A cold-tar built-up roof
Answer: A
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Low-slope roofs (< 2:12) require roofing materials suitable for flat or nearly flat conditions:
Cold-tar built-up roofs (A) are difficult to install in freezing weather because the tar cannot be applied or cured properly in cold temperatures.
Self-sealing shingles (B) are generally used on steeper slopes and depend on heat to activate the sealing strips, making them unsuitable for low slopes and cold weather.
Ballasted EPDM (C) is a single-ply synthetic rubber membrane that can be installed in a variety of weather conditions, including below-freezing temperatures. The ballast (usually gravel) holds the membrane in place on low slopes and does not rely on adhesives or heat curing.
Therefore, ballasted EPDM is the most appropriate.
References:
ARE 5.0 PPD - Building Systems and Assemblies, Roofing Materials and Systems The Architect's Handbook of Professional Practice, 15th Edition - Roofing
NEW QUESTION # 54

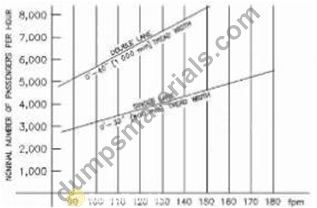

Refer to the exhibit (graph of moving walkway speed vs. nominal passengers per hour).
Based on the graphic shown, which of the following moving walkway speeds will deliver 4,500 passengers per hour utilizing a single lane?
- A. 110 ft per minute
- B. 170 ft per minute
- C. 150 ft per minute
- D. 130 ft per minute
Answer: C
Explanation:
The graph plots moving walkway speeds (feet per minute) on the horizontal axis against the nominal number of passengers per hour on the vertical axis. The curve labeled "Single Lane (90 cm tread width)" shows the passenger capacity for different speeds of a single moving walkway lane.
* For a nominal passenger flow of 4,500 passengers per hour on a single lane, trace horizontally from
4,500 on the vertical axis to intersect the single lane curve.
* The intersection corresponds approximately to a speed of 150 feet per minute (fpm).
* Speeds lower than 150 fpm (e.g., 110 or 130 fpm) correspond to lower passenger capacities (below
4,500), while 170 fpm exceeds 4,500 capacity.
This data is important for architects and planners to size and specify moving walkways in transit terminals, airports, or large public buildings to maintain efficient flow and minimize congestion.
According to NCARB's ARE Project Planning & Design guidelines, understanding capacity and circulation rates for building systems such as moving walkways is essential for designing efficient pedestrian movement and circulation within complex buildings.
References:
ARE 5.0 Project Planning & Design Content Outline: Environmental Conditions and Context - Circulation and Transit Systems Black Spectacles ARE Study Materials: Moving Walkways and Passenger Flow Rates The Architect's Handbook of Professional Practice, 15th Edition, Chapter 7: Circulation and Accessibility
NEW QUESTION # 55
Which of the following are characteristics of heavy-timber construction? Check the four that apply.
- A. Susceptibility to rot
- B. Presence of sapwood to prevent insect damage
- C. Susceptibility to differential shrinkage
- D. Relatively rapid on-site erection times
- E. Suitability to create unusual layouts or irregular forms
- F. Fire resistance
Answer: A,C,D,F
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Heavy timber construction is characterized by:
Fire resistance (A): Large timber members char on the surface when exposed to fire, which protects the structural core, giving inherent fire resistance.
Susceptibility to differential shrinkage (C): Heavy timber elements can shrink unevenly, potentially causing joints or connections to loosen.
Relatively rapid on-site erection times (D): Pre-fabricated heavy timber elements are large and can be quickly erected compared to traditional framing.
Susceptibility to rot (E): Without proper detailing and protection, timber can decay due to moisture exposure.
Unsuitable for unusual layouts or irregular forms (B): Heavy timber tends to be more rigid and better suited for regular layouts.
Presence of sapwood (F): Sapwood is generally more susceptible to insect attack; durable heartwood is preferred to resist insects.
References:
ARE 5.0 PPD - Building Systems and Assemblies, Heavy Timber Construction The Architect's Handbook of Professional Practice, 15th Edition - Wood Construction
NEW QUESTION # 56
An architect is selecting a mechanical system for the first floor of a hotel in a temperate climate. They must consider the following:
* The building footprint covers 95% of the small urban site.
* The first floor has an open floor plan that includes a lobby, bar, and restaurant.
* The plan can only accommodate one 500 sf mechanical room.
What mechanical system should the architect recommend?
- A. Geothermal heat pump
- B. Variable refrigerant flow system
- C. Packaged terminal air conditioners
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Variable Refrigerant Flow (VRF) systems are ideal for buildings with space constraints and diverse internal loads. They provide zoned heating and cooling from a compact mechanical room and allow flexibility with open floor plans by serving multiple zones with variable refrigerant volumes.
Geothermal heat pumps (A) require larger mechanical or ground loop spaces and are less practical in tight urban footprints.
Packaged terminal air conditioners (B) serve individual rooms and require space for multiple units and wall penetrations, which may not be feasible in this context.
Hence, VRF systems balance space efficiency, energy performance, and zoning flexibility.
References:
ARE 5.0 PPD - Building Systems and Assemblies, HVAC Systems
The Architect's Handbook of Professional Practice, 15th Edition - Mechanical Systems
________________________________________
NEW QUESTION # 57
An elementary school requires a renovation, selective demolition, and a major addition in order to accommodate a growing student population. An architectural firm has prepared schematic design plans incorporating the school's increased programmatic needs, including an enlarged library, cafeteria, and gymnasium; a secure courtyard; and additional space for administrative offices and classrooms. The main entrance was relocated in order to improve the traffic and pedestrian flow at the beginning and end of the school day, and additional parking was provided to comply with current zoning requirements.
The existing single-story masonry building was built in 1950. Two small additions were built later: the north addition will be kept and repurposed, but the south addition will be demolished. The building contains asbestos and lead in roof soffits, floor tiles, pipe insulation, and window paint. All existing mechanical systems need to be replaced; new systems have not been selected.
Considerations for the renovation include:
*The relocated front entrance must be easily recognizable, highly visible, and secure.
*Interior and exterior materials need to be durable and maintainable in order to withstand frequent student abuse, but also economical due to strict budget limitations.
*Good indoor air quality and increased energy efficiency are priorities for the selection of mechanical equipment.
After completion, the entire school should look uniform, without a distinctive difference between the existing building and new addition.
Building information:
*Construction Type is II-B.
The following resources are available for your reference:
*Existing Plans, including site and floor plans
*Proposed Plans, including site and floor plans
*Cost Analysis
*Zoning Ordinance Excerpts, for off-street parking requirements
*IBC Excerpts, showing relevant code sections
*ADA Standards Excerpts, showing relevant sections from the ADA Standards for Accessible Design An elementary school library has an occupancy load of 150.
What is the minimum clear opening width required?
- A. 30"
- B. 36"
- C. 32"
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
According to ADA Standards and IBC egress requirements for an occupancy load of 150, the minimum clear opening width for doors must be at least 36 inches to accommodate the expected occupant flow and provide accessible egress.
30" or 32" openings are too narrow for this occupancy load.
Ensuring the minimum door width meets code is essential for safe and accessible design.
References:
ADA Standards for Accessible Design
IBC Chapter 10 - Means of Egress
ARE 5.0 PPD - Codes and Regulations
________________________________________
NEW QUESTION # 58
The architect's greatest contribution to good seismic design is in the design of which of the following?
- A. Structural components and connections
- B. Building's plan and cross-sectional configuration
- C. Site location and building orientation
- D. Building's interior partition arrangement
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Architects have the most influence on seismic performance through building form and configuration, including the plan and cross-sectional layout. A regular, symmetrical, and well-configured building reduces torsional forces and stress concentrations during seismic events.
Structural components and connections (A) are primarily the engineer's responsibility.
Interior partitions (B) affect non-structural behavior but are less critical to seismic response.
Site location and orientation (D) influence seismic forces but are often fixed or limited by client and site constraints.
Thus, architects significantly improve seismic safety through thoughtful spatial and structural configuration design.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Seismic Design
The Architect's Handbook of Professional Practice, 15th Edition - Earthquake Resistant Design
NEW QUESTION # 59
Refer to the exhibit (building with wind impacting wall A, and openings shown).
For the building subjected to wind as shown, the design pressure acting on the interior face of wall A would be what?
- A. Acting away from wall A only
- B. Acting both toward and away from wall A
- C. Acting toward wall A only
- D. Zero
Answer: B
Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
With openings allowing wind passage, pressure on the interior of wall A varies:
Wind pressure on the windward side induces positive pressure toward wall A.
Wind entering openings can create localized negative pressure (suction) on the interior surface, acting away from wall A.
Thus, the interior face experiences both positive and negative pressures depending on location and airflow, meaning D. Acting both toward and away from wall A is correct.
References:
ARE 5.0 PPD - Environmental Conditions and Context, Wind Loads on Building Enclosures The Architect's Handbook of Professional Practice, 15th Edition - Building Envelope Design
NEW QUESTION # 60
......
Ace NCARB Project-Planning-Design Certification with Actual Questions May 11, 2026 Updated: https://braindumps2go.dumpsmaterials.com/Project-Planning-Design-real-torrent.html
